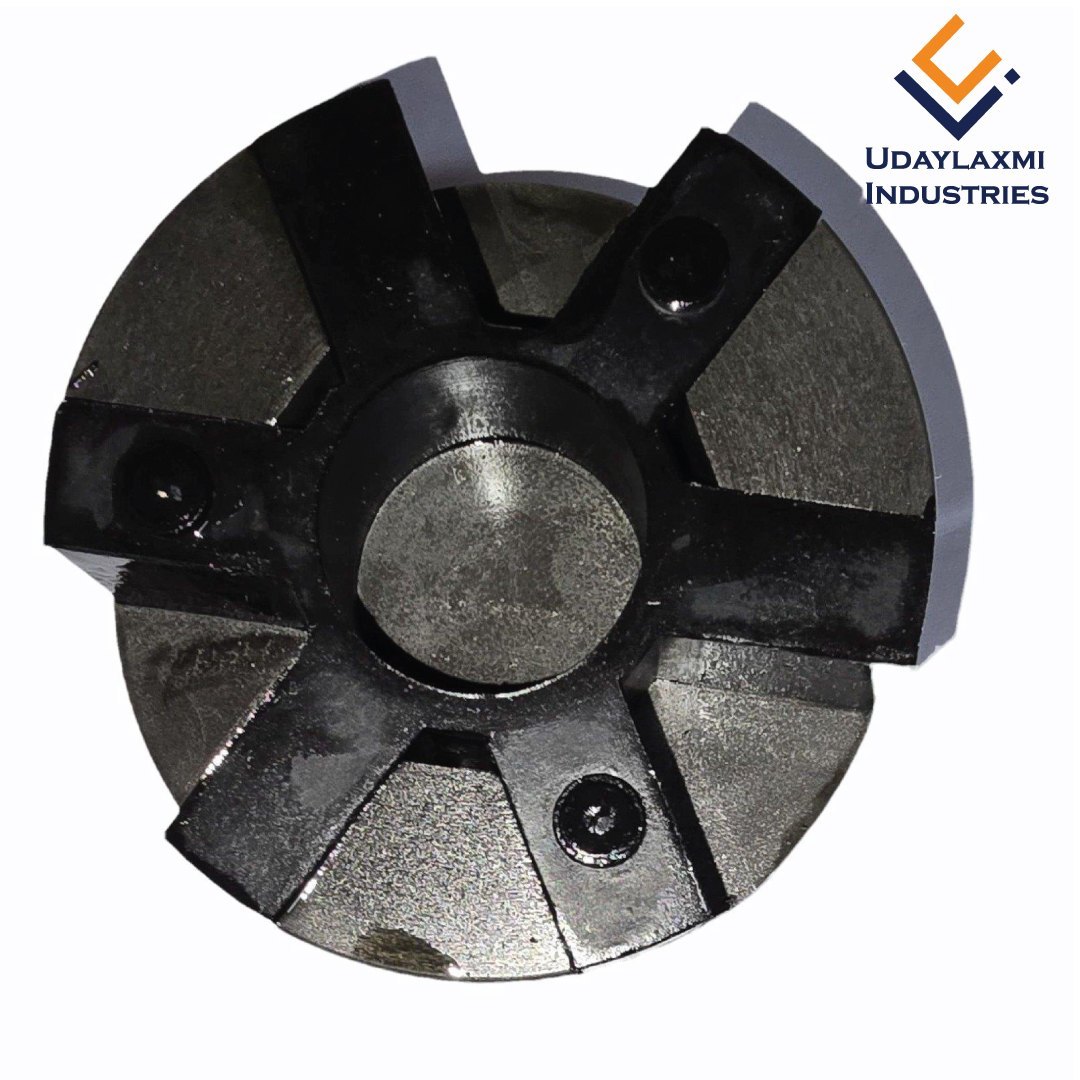

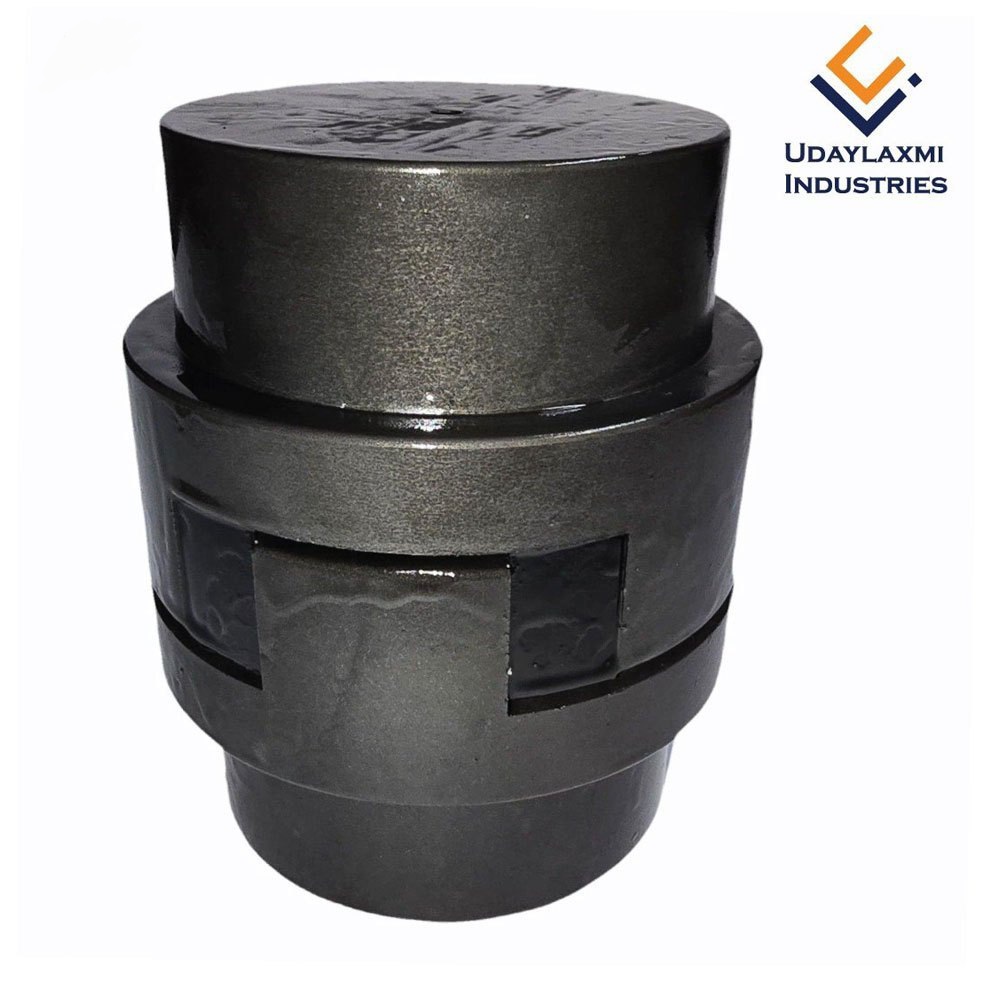

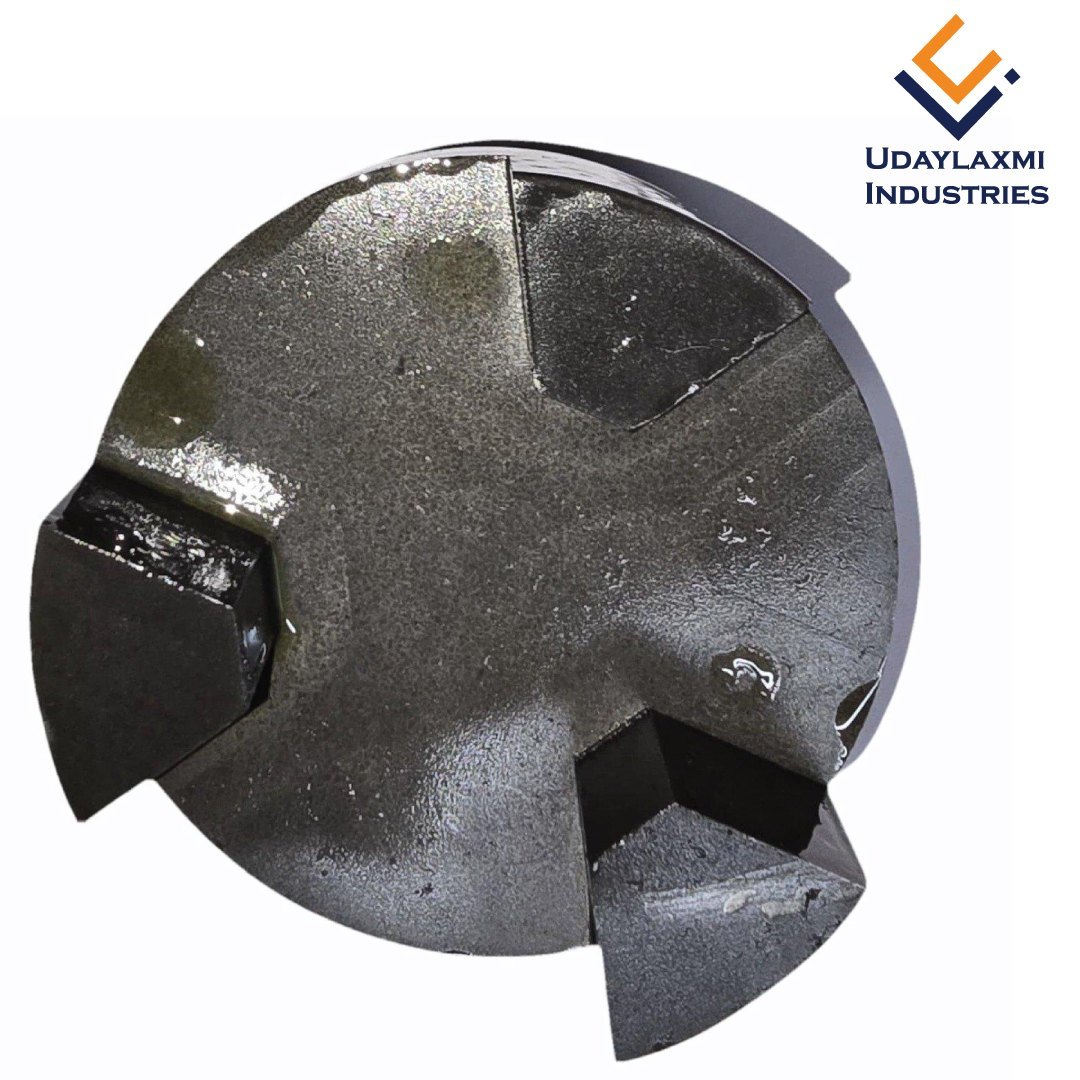

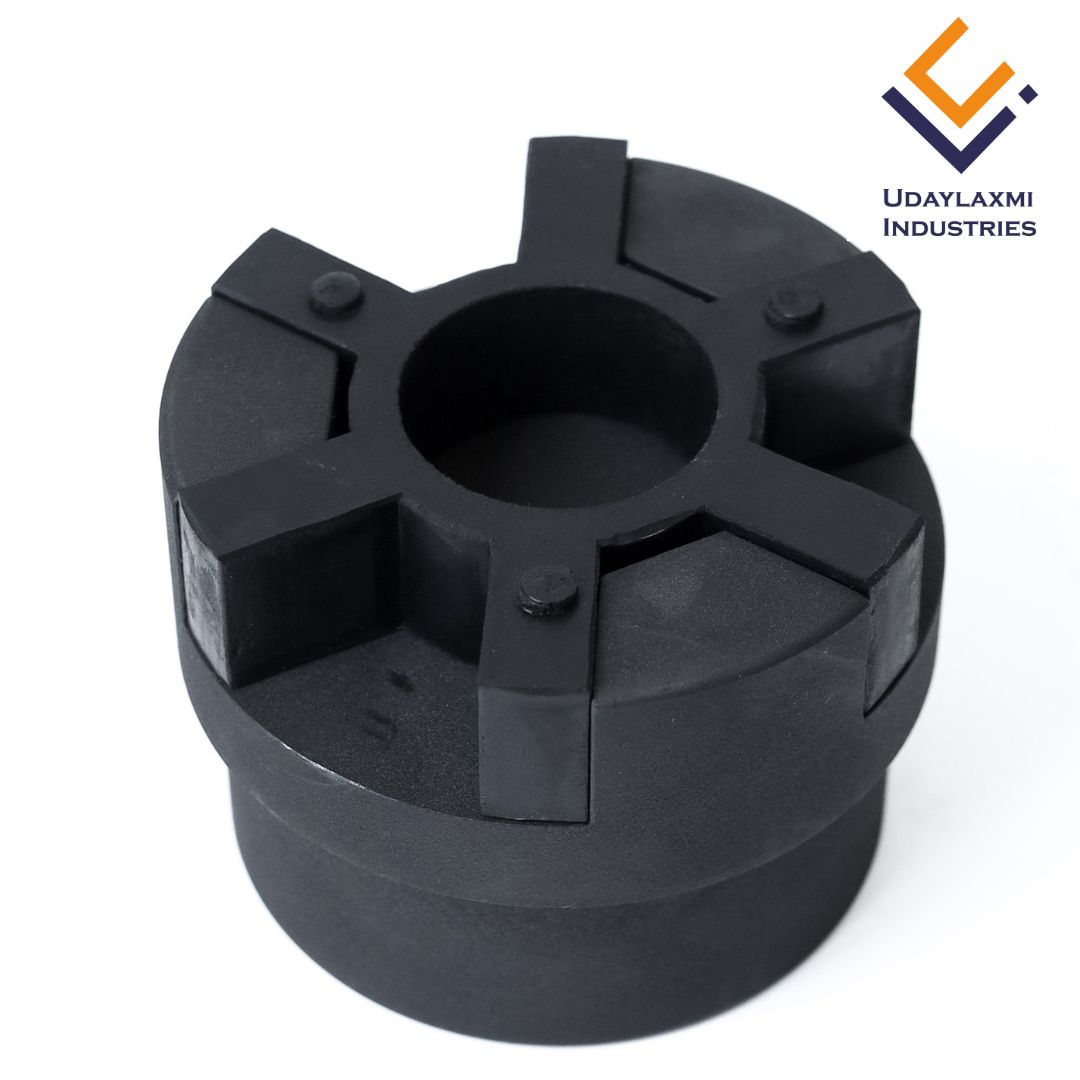

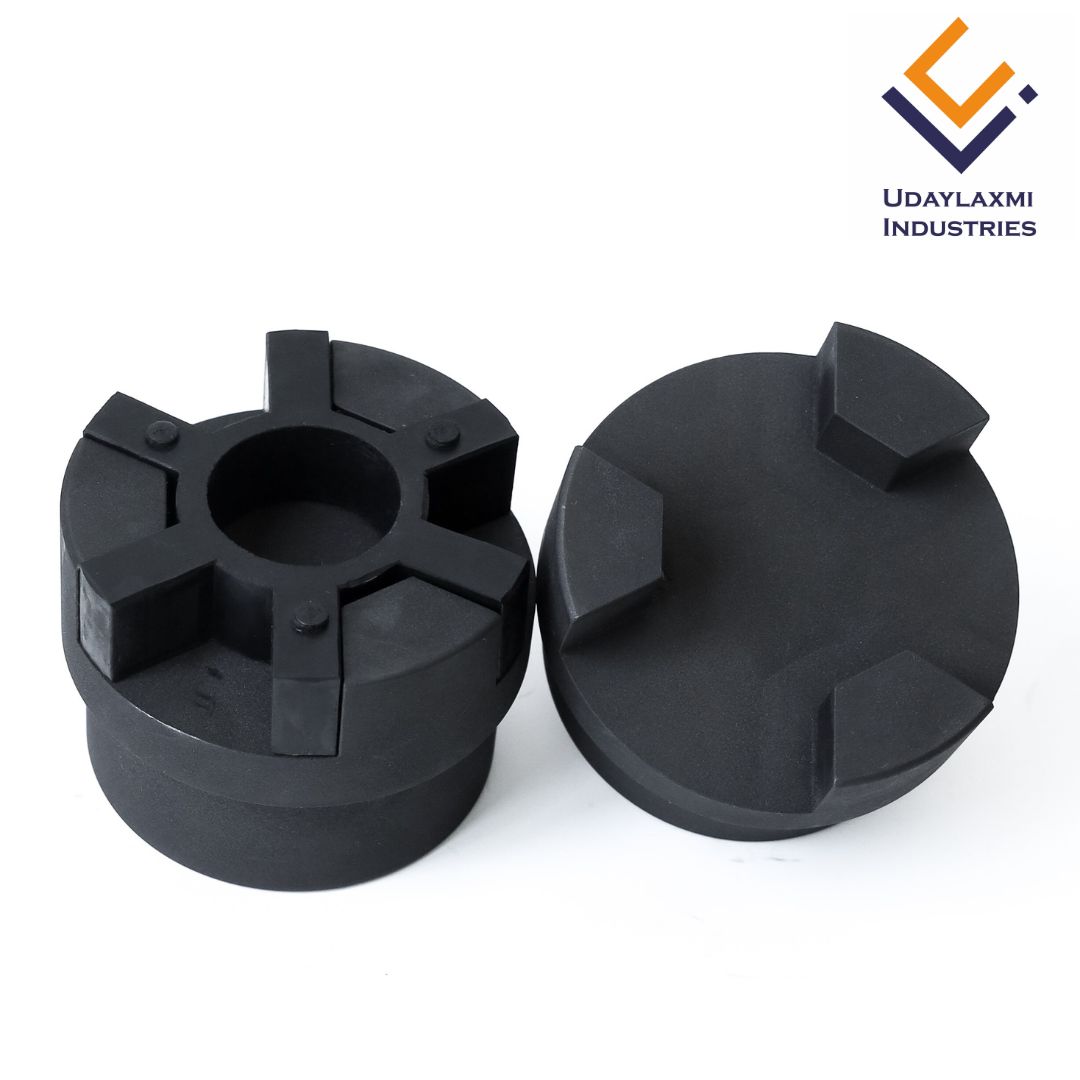

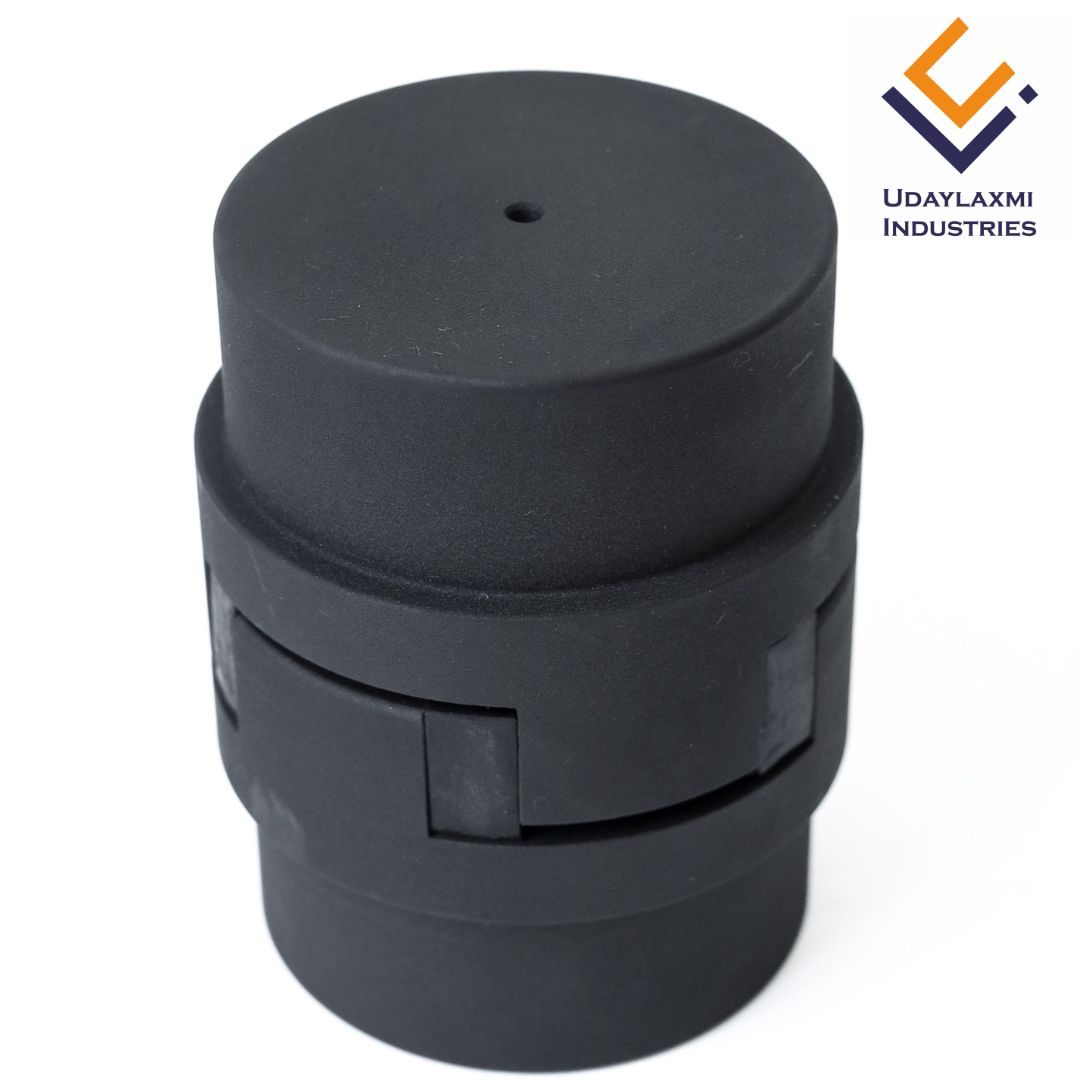

L Series Jaw Coupling
Precision-Crafted for Reliable Power Transmission in Industrial Systems
The L Series Jaw Coupling is engineered for superior performance in industrial power transmission applications. Featuring robust construction and precision engineering, it ensures reliable operation and extended service life.
Key Features
- High torque transmission capacity
- Excellent vibration dampening
- Easy installation and maintenance
- Flexible design accommodates misalignment
Available Variants
L-090
90mm Bore
L-100
100mm Bore
L-110
110mm Bore
L-130
130mm
Product Specifications
Technical Details
| Model | Bore Size (mm) | Torque Rating (Nm) | Max Speed (RPM) | Weight (kg) |
|---|---|---|---|---|
| L-090 | 90 | 1200 | 3600 | 12.5 |
| L-100 | 100 | 1500 | 3400 | 15.2 |
| L-110 | 110 | 1800 | 3200 | 18.7 |
| L-130 | 130 | 2200 | 3000 | 22.4 |
Technical Details
Product Features
Materials & Construction
- Hub: Cast Iron Grade 25

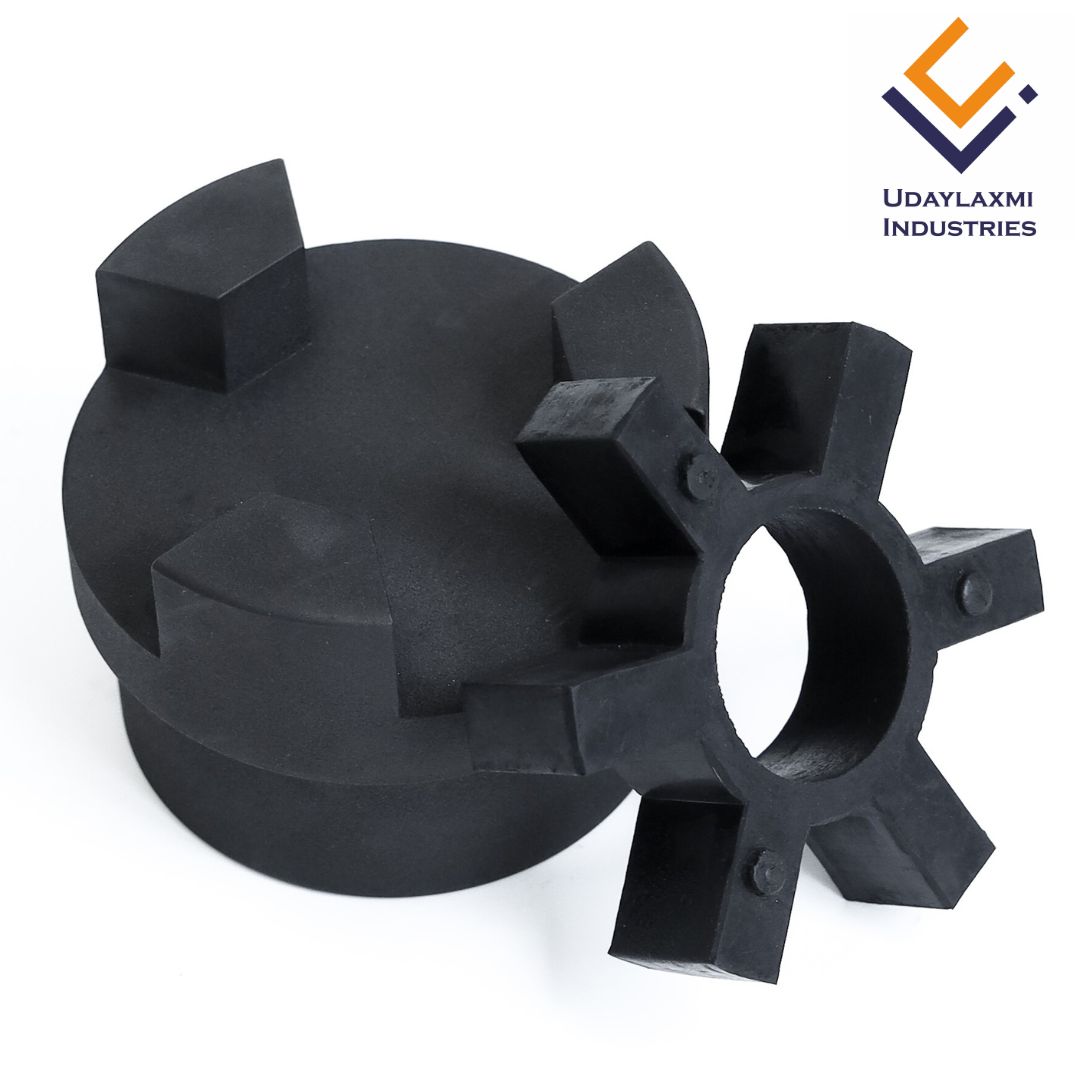

- Spider: NBR / Hytrel
- Hardware: High-tensile steel
- Surface Treatment: Phosphating
Operating Parameters
- Temperature Range: -40°C to +100°C
- Maximum Misalignment: 1°
- Axial Movement: ±1.5mm
- Balancing Grade: G6.3
Installation & Maintenance
- Tool-free assembly
- No lubrication required
- Easy spider replacement
- Visual inspection possible
Applications
Industry Solutions
Industrial Machinery
Perfect for heavy machinery and manufacturing equipment requiring precise power transmission
Mining Equipment
Ideal for demanding mining operations with high shock loads and harsh environments
Pumping Systems
Suitable for water treatment plants and chemical processing applications
Power Generation
Used in power plants and generator sets requiring reliable coupling solutions
