SW Series Jaw Coupling
SW Series Jaw Coupling
Compact, High-Torque Jaw Coupling for Precision Applications
The SW Series Jaw Coupling is designed for compact, high-performance power transmission. Ideal for applications that require high torque and precise alignment. It is the preferred choice for sectors such as aerospace, robotics, and high-precision industrial equipment.
Key Features
- High torque transmission
- Vibration damping
- Maintenance-free design
- Excellent misalignment handling
- Resistant to oil and chemical exposure
Available Variants
SW-095
SW-099
SW-100
SW-110
SW-150
SW-190
SW-225

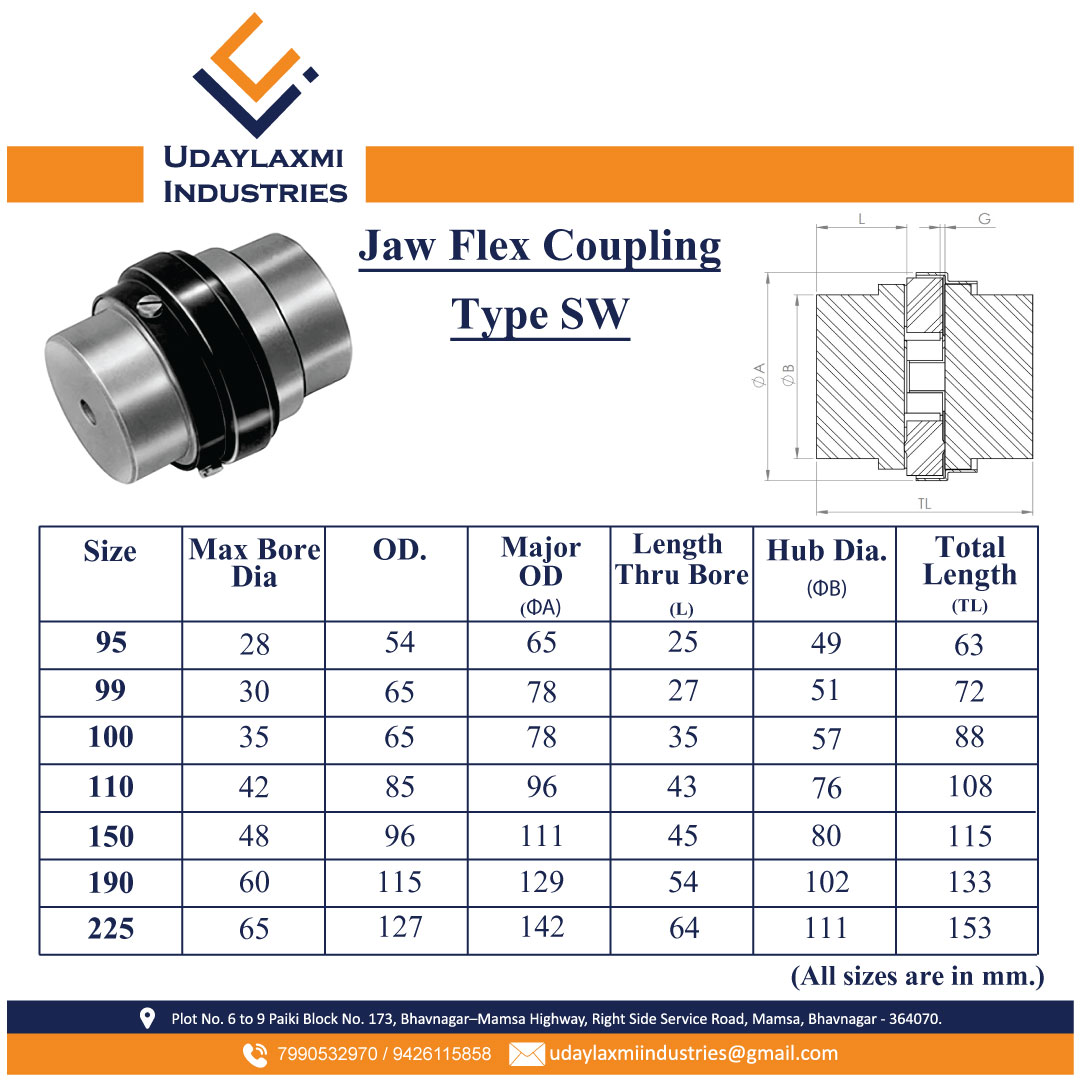

Product Specifications
Technical Details
| Model | Max. Bore Size (mm) | Rated Torque (Nm) | Weight (Kg) |
|---|---|---|---|
| SW-095 | 28 | 21 | 0.820 |
| SW-099 | 30 | 35 | 1.20 |
| SW-100 | 35 | 46 | 1.60 |
| SW-110 | 42 | 89 | 3.40 |
| SW-150 | 48 | 141 | 4.30 |
| SW-190 | 60 | 190 | 7.80 |
| SW-250 | 65 | 265 | 10.80 |
Technical Details
Product Features
Materials & Construction
- Hub: Cast Iron
- Spider: Nitrile / Polyurethane
- Surface Treatment: Blackodising
Operating Parameters
- Temperature Range: -40°C to +100°C
- Misalignment Tolerance: 1° Angular, 0.5mm Axial/Radial
Standards & Compliance
- Replacement without disturbing the alignment of hubs
- Easy spider replacement
- Visual inspection possible
Applications
Industry Solutions
Robotics & Automation
Precision coupling for dynamic movement and controlled backlash
Power Transmission
Used in power plants and generator sets requiring reliable coupling solutions
Industrial Machinery
Perfect for heavy machinery and manufacturing equipment requiring precise power transmission
Pumps & Compressors
Withstands vibration and pressure variations
